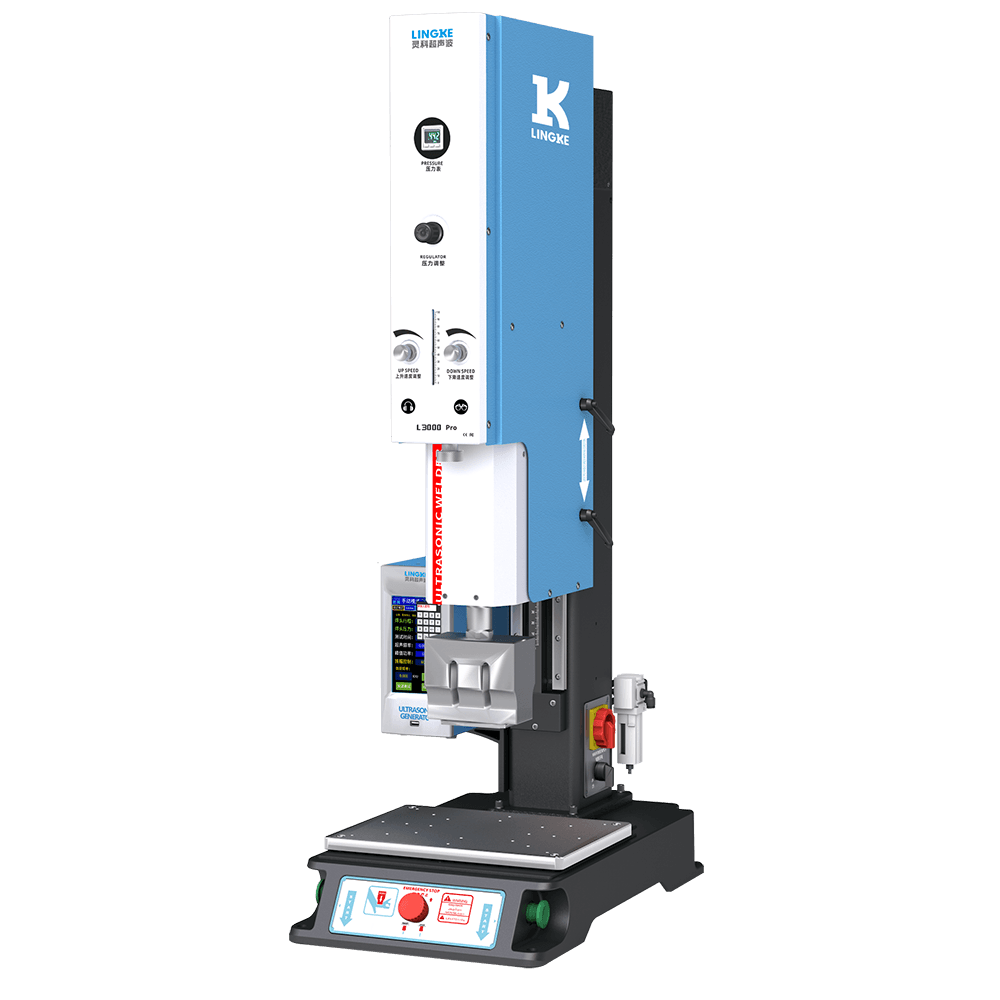

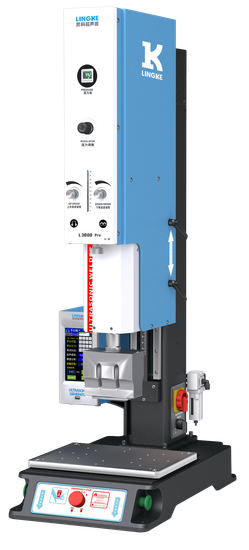

L3000 Pro

(2000W/3000W/4000W Ultrasonic Welding Machine)

Features ——

• Multiple-mode welding control including time mode,energy mode,pressure mode & continuous mode to meet increasingly sophisticated demand today;

• Machine fixture-base,rear base,and converter housing are made with heavy die-casting aluminum moulding process and High-precision CNC machining,the machine base is strengthen with ribs design to provide a flat and stable fixture mounting base;

• Integrated dual magnetic valve design.100mm-stroke cylinder, and adjustable welding stroke (0-80mm)improves welding efficiency and quality;

• Equipped with heavy-duty linear rails,intelligent electronically controlled press-lifting device,which enable<1 bar welding pressure for precision application;

• The converter connection adopts high-frequency connector, 360 rotational alignment;The front panel and pillar are equipped with scales,makes height adjustment more accurate and faster;

• The machine automatically scan the resonance point of the converter system periodically and compensate for the frequency variation due to temperature changes etc.
