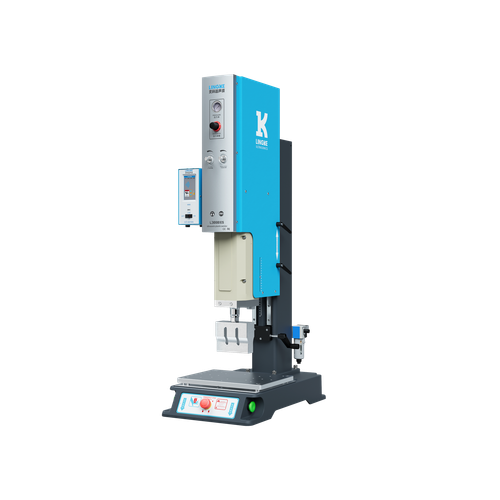

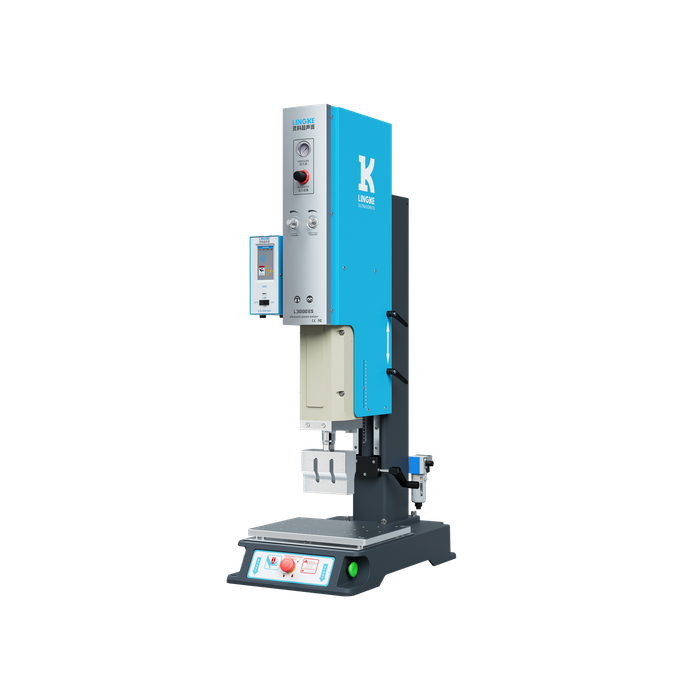

L3000 ES

(2000W/2600W/3200W Ultrasonic Welding Machine)

Features ——

• 3.5-inch full-color touch screen, digital parameter setting;

• External auxiliary signal port: film winding machine, noise enclosure, safety grating etc;

• Quality control function optional;

• It adopts heavy die-casting aluminum forming process, with thick rib design at the bottom, and high-precision CNC machining;

• The press adopts 120X160mm seamless steel square pillar to enhance its mechanical strength;.

• 75mm-stroke cylinder, and adjustable welding stroke (0-30mm) improves welding efficiency and quality;

• The precision bevel gear and the plane bearing cooperate to control the lifting and lowering of the press, makes shaking of the rocking plate is smoother and less labor-intensive;

• Equipped with heavy-duty linear rails, intelligent electronically controlled press-lifting device, which enable<1bar welding pressure for precision application.

• International standard of CE&FCC certification.
